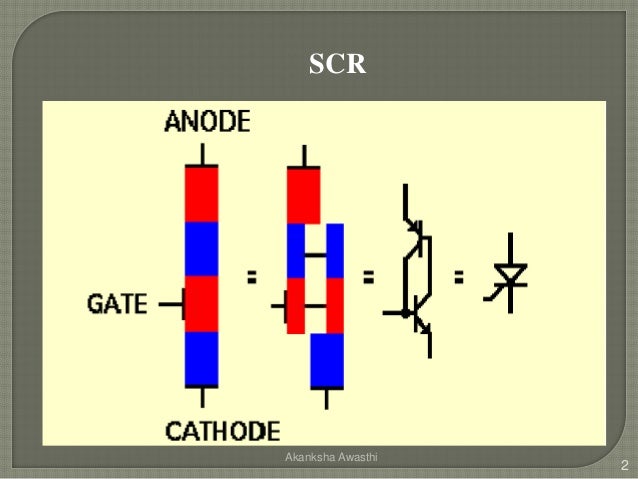

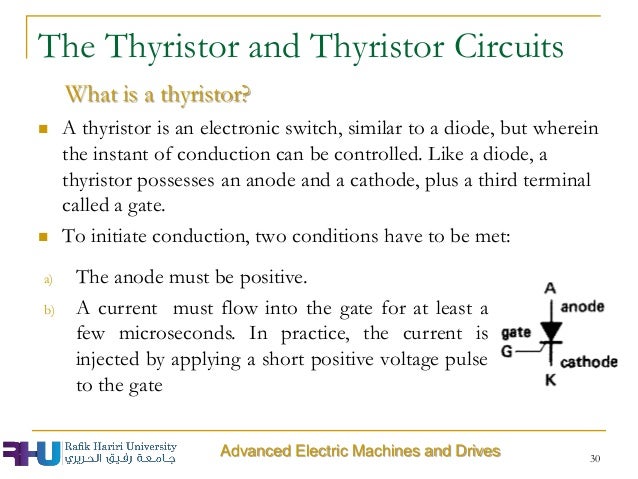

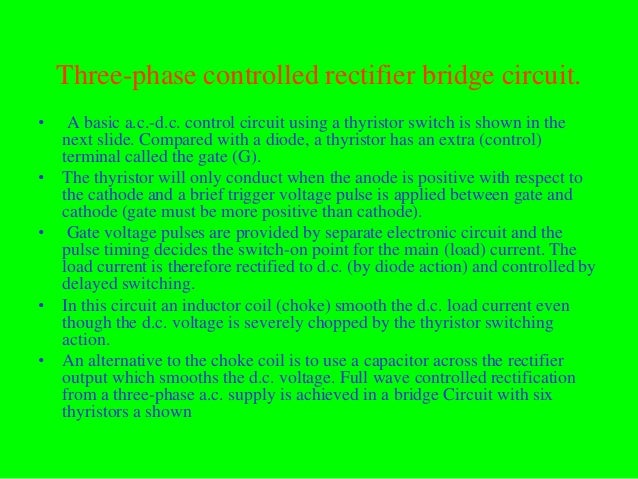

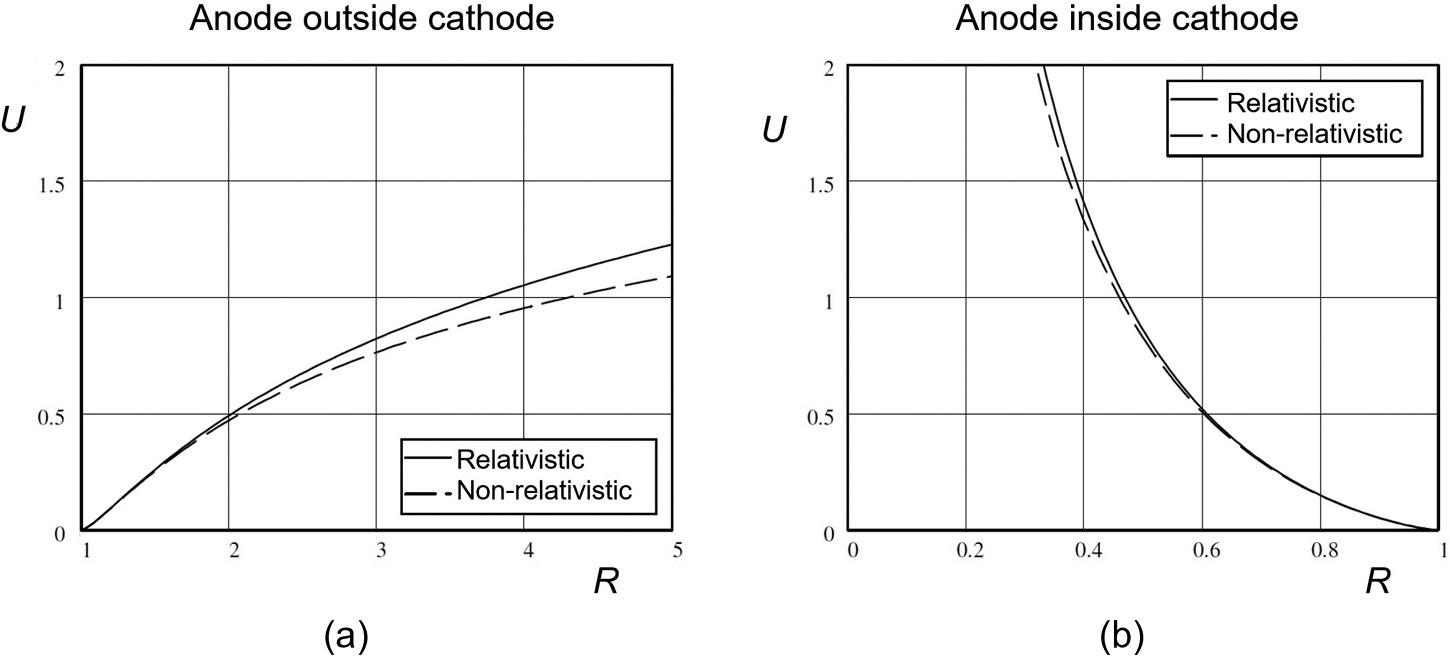

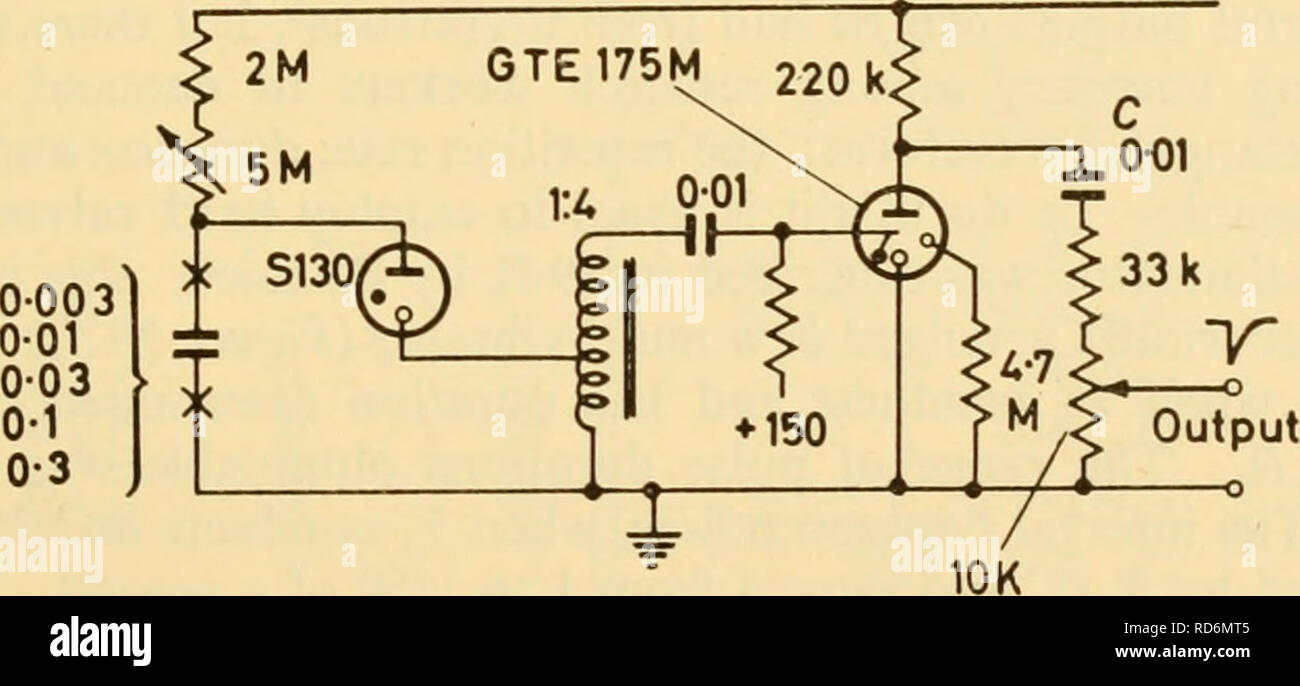

Although anode and cathode are fundamentally defined in terms of function not structure, there are some exceptional devices where the function is essentially locked to the structure. In such a case, it is arguably permissible to label the structures as anode and cathode, because only one direction of current-flow makes sense. On the list in section 2, all the examples except for the ...

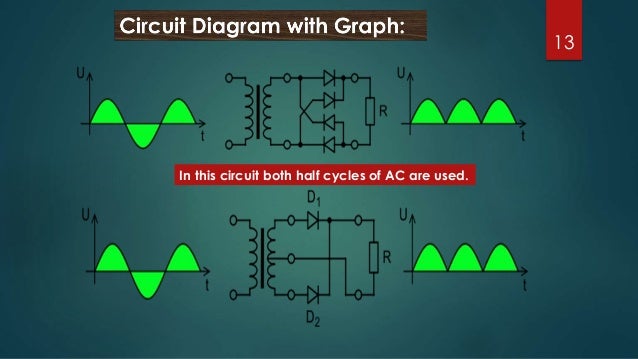

Which way to draw diode in a circuit diagram. Ask Question Asked 7 years, 4 months ago. ... conventional current flows through the diode from the anode to the cathode; that is, conventional current flows in the direction that the "arrow" of the diode symbol is pointing.

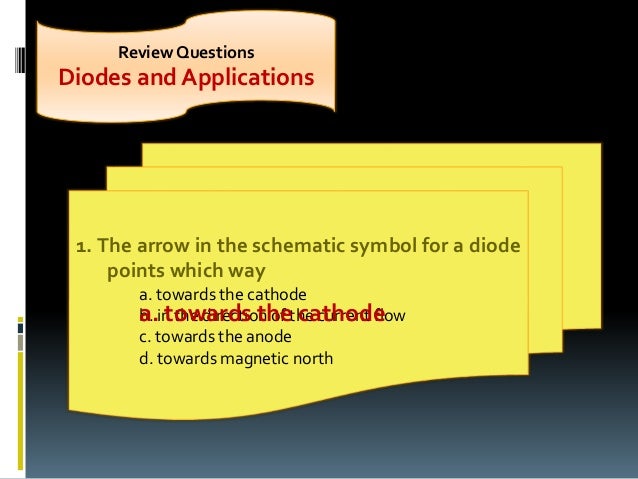

The anode is the arrow shaped end, while the cathode is the bar shaped end. You can remember this by recalling that current flows from anode to cathode in an ordinary diode; well, that is, if you ...

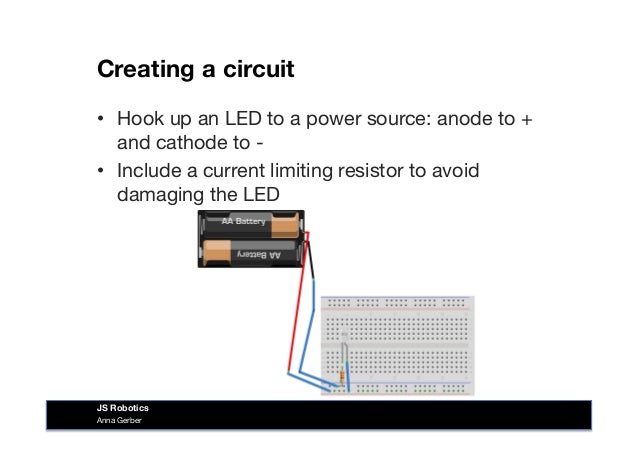

The positive side is called the anode, and the negative one is called the cathode. The diode circuit symbol, with the anode and cathode marked. Current through a diode can only flow from the anode to the cathode, which would explain why it's important for a diode to be connected in the correct direction.

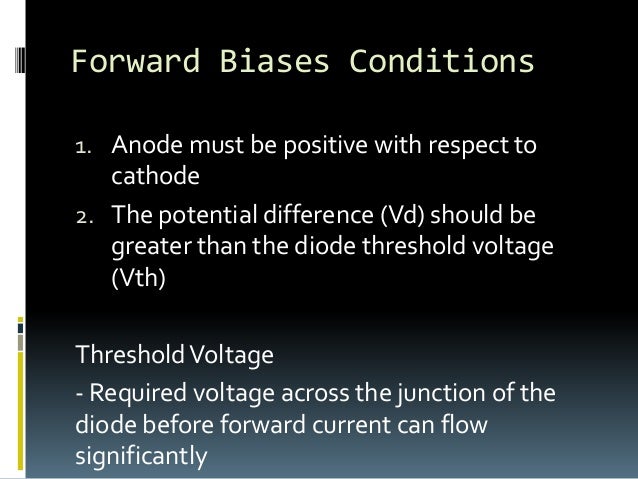

How To Test a Diode. ... Anode-Cathode Diode Resistance Test. ... To conduct this test, we need to place the diode in a circuit with DC voltage feeding the diode. The circuit below is a good test to check a diode: You can feed the diode any voltage you want above the threshold voltage. And the diode will drop the threshold voltage across its ...

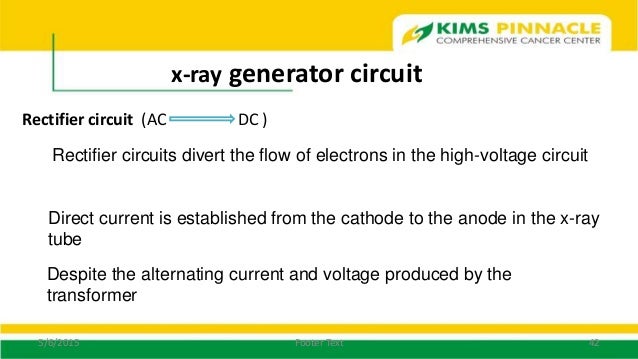

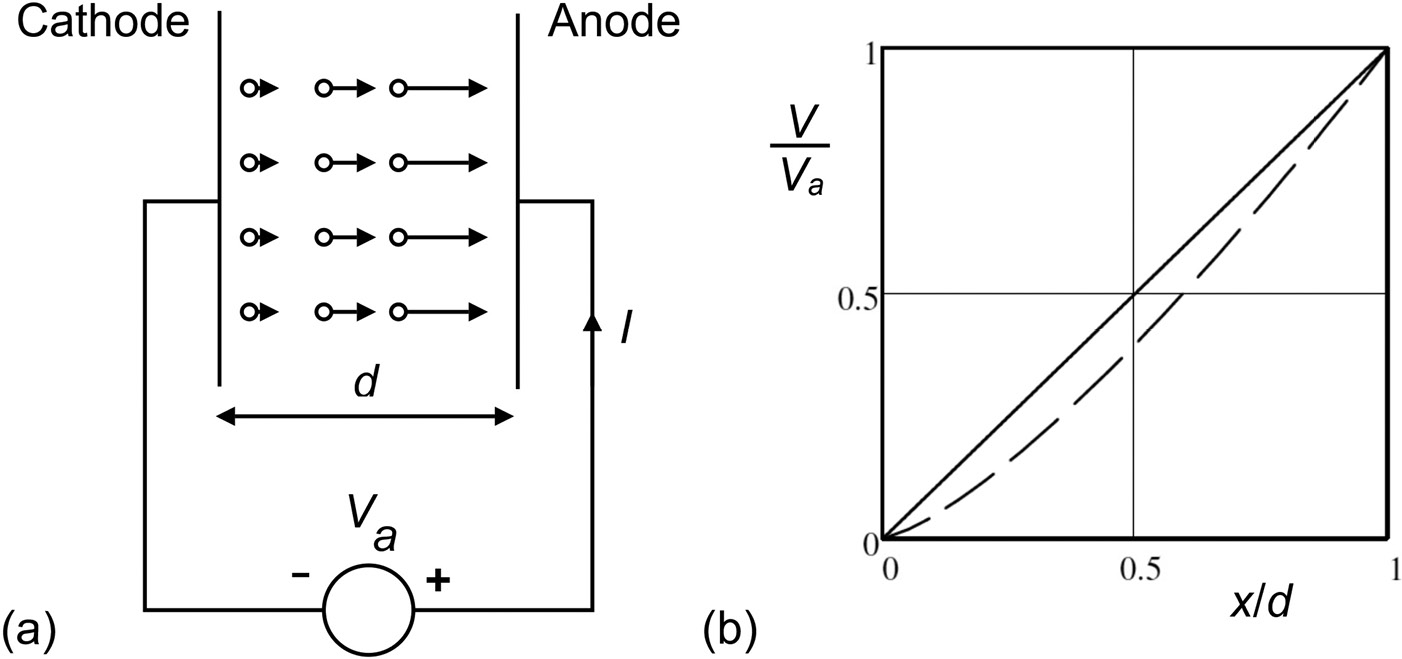

Charge flow. The terms anode and cathode are not defined by the voltage polarity of electrodes but the direction of current through the electrode. An anode is an electrode through which conventional current (positive charge) flows into the device from the external circuit, while a cathode is an electrode through which conventional current flows out of the device.

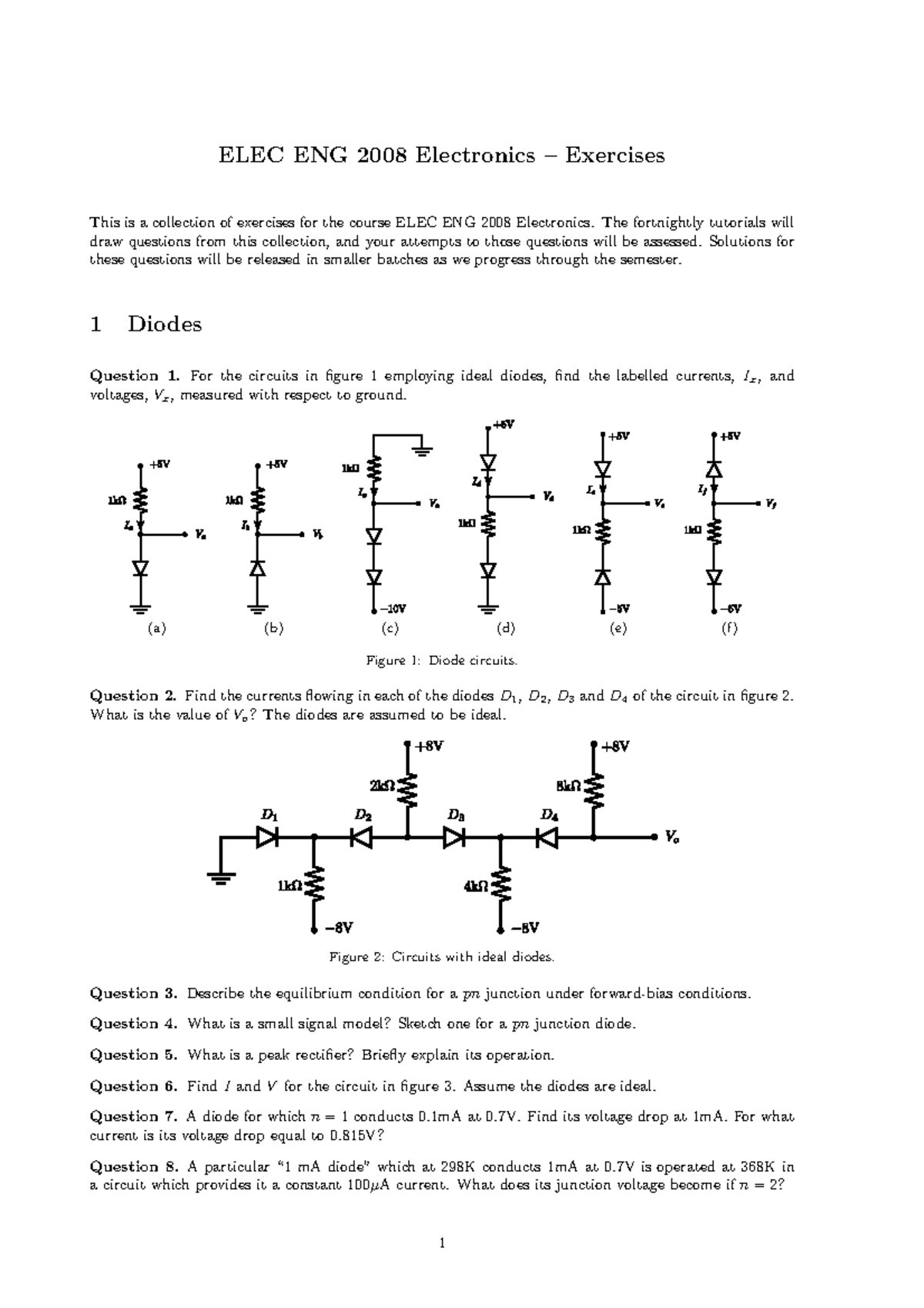

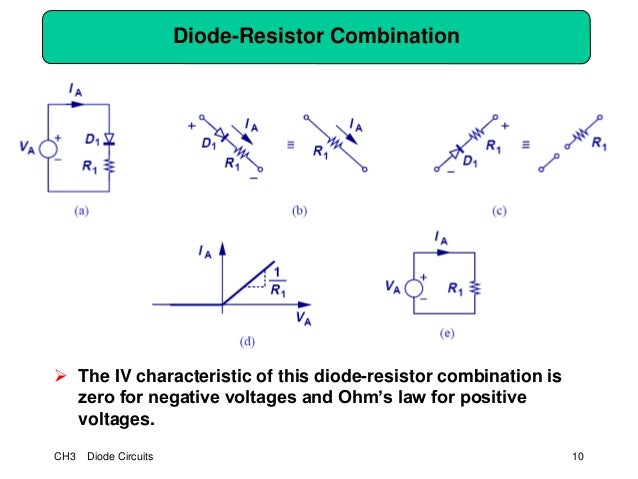

A diode is a simple two terminal device. The two terminals are labeled anode (positive side) and cathode (negative side). The diode symbol used in a circuit is shown in Fig. 1a, with the definition of the plus and minus directions of voltage and current. A positive voltage applied to the diode

The positive side is called the anode, and the negative one is called the cathode. The diode circuit symbol, with the anode and cathode marked.Current through a diode can only flow from the anode to the cathode, which would explain why it's important for a diode to be connected in the correct direction.

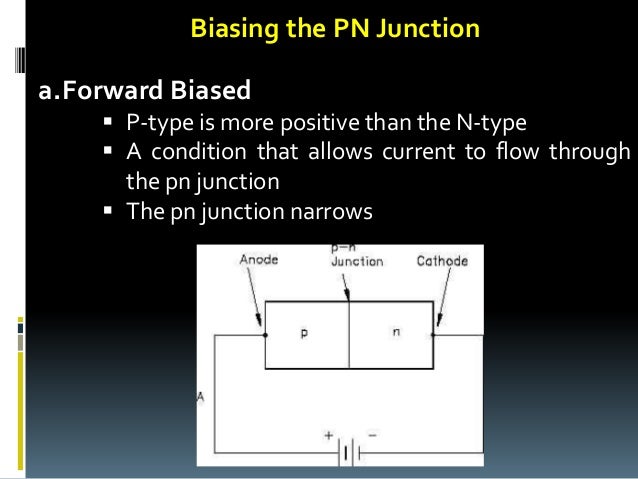

Diode representations: PN-junction model, schematic symbol, physical part. The schematic symbol of the diode is shown in the figure above (b) such that the anode (pointing end) corresponds to the P-type semiconductor at (a). The cathode bar, non-pointing end, at (b) corresponds to the N-type material at (a).

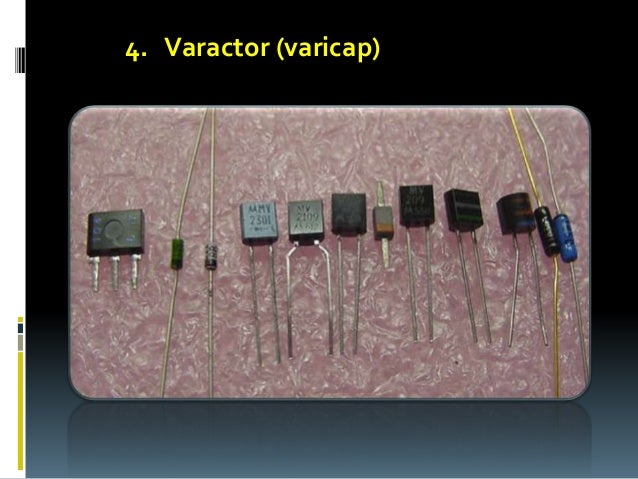

Diodes must be connected the correct way round, the diagram may be labelled a or + for anode and k or -for cathode (yes, it really is k, not c, for cathode!). The cathode is marked by a line painted on the body. Diodes are labelled with their code in small print, you may need a hand lens to read it.
